PC CONTROL VALVES FOR SERIES HYDRAULIC CIRCUITS CONTROL VALVE WINDLASS TYPE CSBF-G40

Name: PC CONTROL VALVES FOR SERIES HYDRAULIC CIRCUITS CONTROL VALVE WINDLASS TYPE CSBFG40
Brand: Fei Hang
Price: 1 USD

China PC CONTROL VALVES FOR SERIES HYDRAULIC CIRCUITS CONTROL VALVE WINDLASS TYPE CSBF-G40 wholesale

Brand Name : Fei Hang

Model Number : CSBF

Certification : Inspection Report

Place of Origin : Jiangsu Yangzhou

MOQ : 1

Price : Negotiable

Payment Terms : Advance payment and delivery

Supply Ability : 1000

Delivery Time : The 3 day

Packaging Details : Wooden box

Ship standard : CB/T3198-2001

Nominal flow : 120-700L/min

Nominal pressure : 25Mpa

Safety valve pressure range : 5-25Mpa

Handle operating force : ≤40N

Median function : M,O,Y,H,K,P

Color : Blue

Contact Now

PC CONTROL VALVES FOR SERIES HYDRAULIC CIRCUITS MODEL CSBF-G20

CONTROL VALVE-WINCH CONTROL BLOCK MODEL CSBF-G25

HYDRAULICS CONTROL VALVES MODEL CSBF-G32

MANUAL PROPORTIONAL FLOW DIRECTIONAL BLOCK VALVE FOR SHIPS

Control Valve Windlass MODEL CSBF-G40

PC CONTROL VALVES FOR SERIES HYDRAULIC CIRCUITS CONTROL VALVE WINDLASS TYPE CSBF-G40

FH-CONTROL VALVE-WINCH CONTROL BLOCK.pdf

PARAMETER SELECTION TABLE

PARAMETER SELECTION TABLE
Model	Nominal diameter (mm)	Flow (L/min)	Pressure (MPA)	Safety valve pressure regulation (MPA)	Handle control force(N)	Mid-position spool valve function
CSBF-G20	20	120	25	5-25	≤40	M-type
CSBF-G25	25	200				O-type
CSBF-G32	32	300				H-type
CSBF-G40	40	450				Y-type
CSBF-G50	50	700				K-type

The median function of this manual proportional control valve can be divided into the following categories:

CSBF TYPE marine manual proportional flow

direction compound valve is a three-position

four-way reversing valve with pressure

compensation, flow proportional adjustment

and safety protection. It has good reversing

speed regulation performance, good reliability,

convenient operation and long life. It is widely

used in the hydraulic system of ship machinery

and other various machinery

Can be selected according to the following parameter table

FH-CONTROL VALVE-WINCH CONTROL BLOCK.pdf

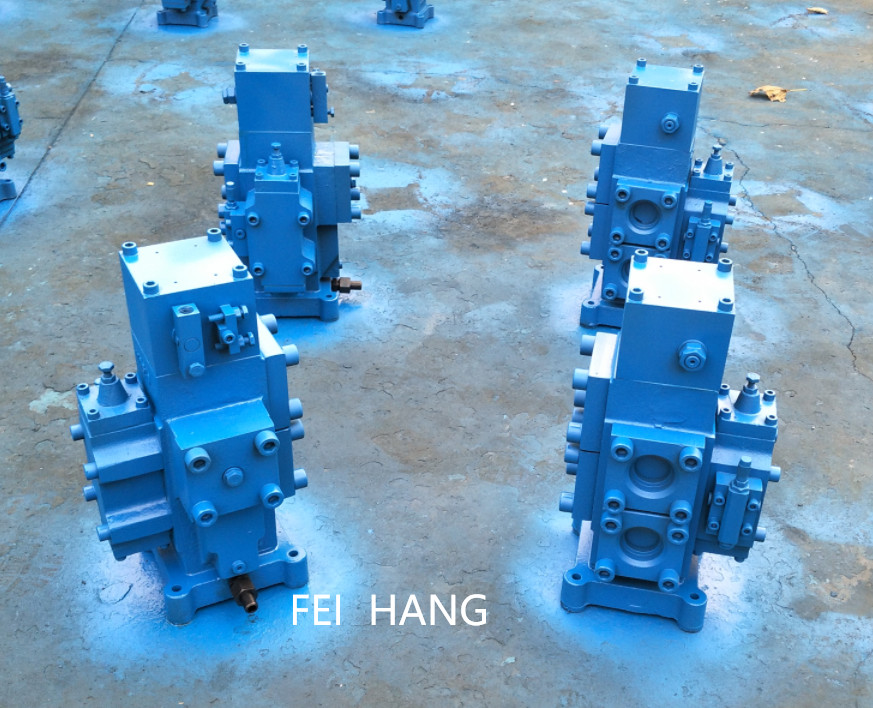

PC CONTROL VALVES FOR SERIES HYDRAULIC CIRCUITS CONTROL VALVE WINDLASS TYPE CSBF-G40 Images
